CE-ZJR Series Fully Functional Vacuum Emulsifier
The lid of the emulsifying tank is automatic lifting type, and the main tank can be tilted for pouring.
The emulsifying tank is equipped with a high-shear homogenizer and a counter-rotating wall scraper.
It comes with two pre-treatment tanks: a water phase tank and an oil phase tank.
The pre-treatment tanks are equipped with a high-speed dispersion system.
Pilot-scale fully functional emulsifier
Model
CE-ZJR type
Design capacity (L)
30-150
Maximum working capacity (L)
25-120
Minimum working capacity (L)
10-45
Production-scale fully functional emulsifier
Model
CE-ZJR type
Design capacity (L)
250-2500
Maximum working capacity (L)
200-2000
Minimum working capacity (L)
75-750
Fully functional “laboratory-scale” vacuum emulsifier
Model
CE-ZJR type
Design capacity (L)
250-2500
Maximum working capacity (L)
200-2000
Minimum working capacity (L)
75-750
CE-SP series external circulation emulsifier
Divided into two main categories: CE-SPA and CE-SPC. CE-SPC is a standalone unit with lifting function, while CE-SPA is more suitable for engineering installation.
The equipment is equipped with a bottom-mounted internal or external circulation high-shear homogenizer.
The emulsifying tank is standardly equipped with a bidirectional agitator with wall scraper.
Provides the same emulsification performance as the CE-ZJR series.
Pilot-scale fully functional emulsifier
Model
CE-SPA
Design capacity (L)
650-6000
Maximum working capacity (L)
520-5000
Minimum working capacity (L)
110-1000
ELCO HEREM
ELCO-HEREM is the ideal equipment for producing creams, lotions, ointments, gels, toothpaste, and food sauces.
The core of the ELCO-HEREM emulsification system is a stator-rotor homogenizer installed at the bottom of the tank. This structure ensures that all materials inside the tank can pass through the homogenizer at least twice before discharge, since materials are drawn in by the running homogenizer and discharged through the homogenizer’s pumping capacity. The homogenizer’s pumping ability also provides power for CIP cleaning.
To meet different customer needs, ELCO-HEREM is available in two versions: H and V. The H version features a horizontally installed homogenizer, which improves powder feeding efficiency and reduces the overall height of the machine. The V version features a vertically installed homogenizer, offering higher cleanliness and making it suitable for applications with strict hygiene requirements.
ELCO-HEREM H
Model
CE-MC-H
Design capacity (L)
15-2500
Maximum working capacity (L)
12-2000
Minimum working capacity (L)
3-5000
ELCO-HEREM V
Model
CE-MC-V
Design capacity (L)
20-1500
Maximum working capacity (L)
25-2000
Minimum working capacity (L)
6-500

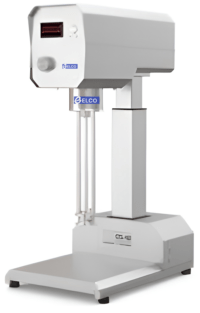

CE-LR series high-shear homogenizer
The CE-LR series high-shear homogenizer is developed by our company based on the theory of emulsion stability. This equipment uses the mechanical energy provided by a high-speed rotating stator-rotor system to mix one phase into another. Through the deformation and breakup of coarse droplets, the large droplets are rapidly broken down into fine droplets ranging from 120 nm to 5 μm, ultimately achieving a uniform emulsification process.
Pilot-scale fully functional emulsifier
Model
CE-ZJR type
Design capacity (L)
250-2500
Maximum working capacity (L)
200-2000
Minimum working capacity (L)
75-750
